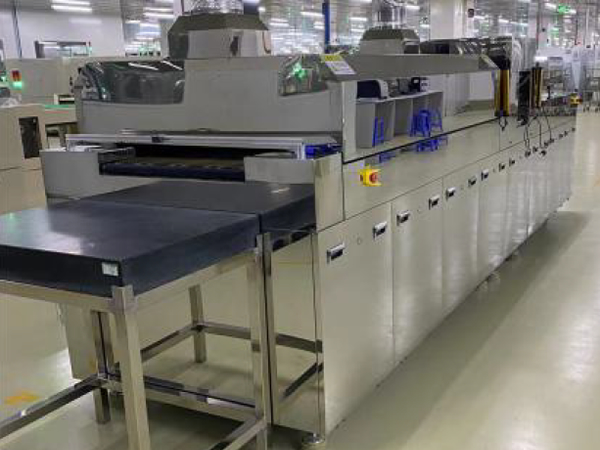

Horizontal leveling and straightening machine

Equipment features:

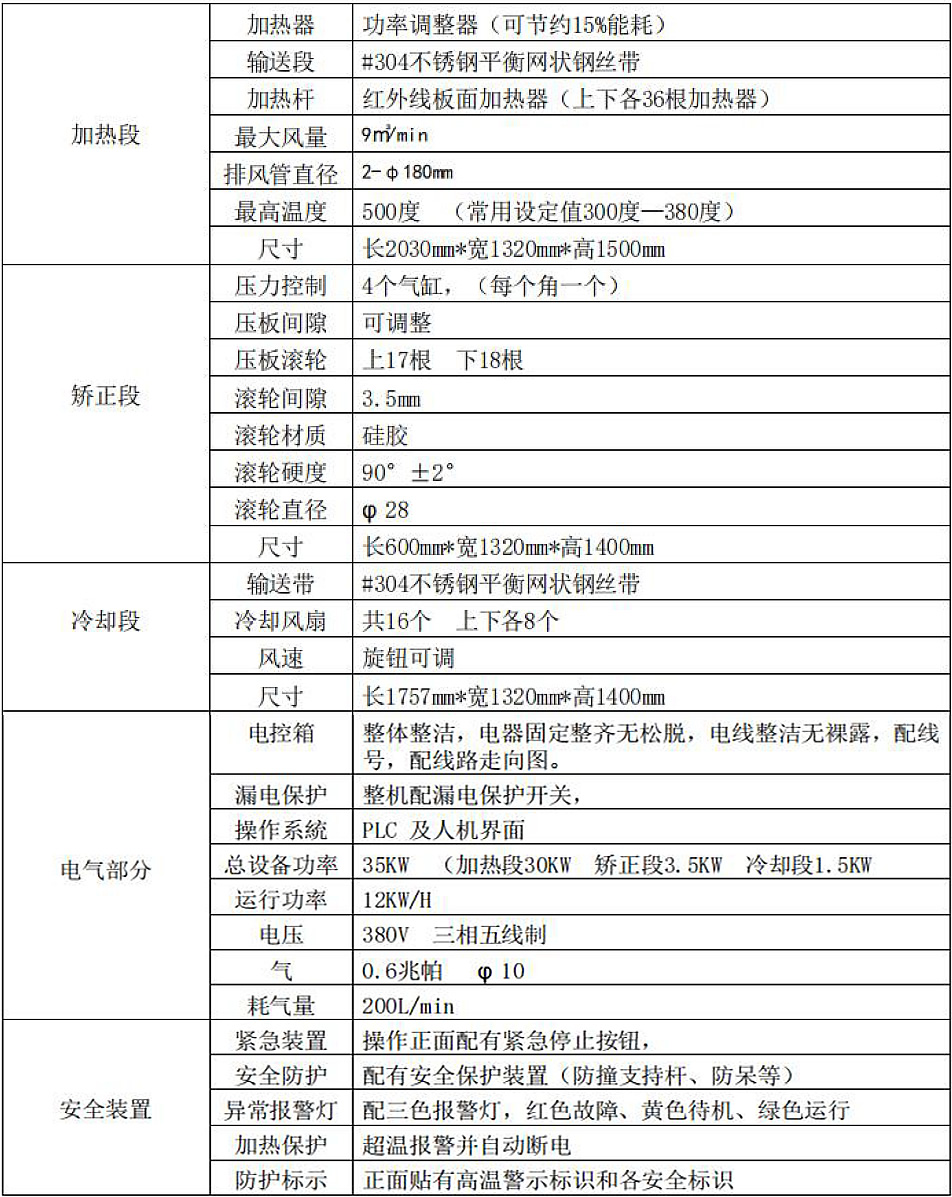

The equipment is divided into three parts: heating section, correction section, and cooling section
Effective width of production board: maximum board 730mm * 730mm
Minimum board 30mm * 100mm
Production board thickness 0.3mm~3.5mm
Compatible with multi column or single column boards
Production speed 0~5m/min (adjustable)
Inlet width 780mm
Horizontal height: 1000mm
Work direction: Left in, right out (customized according to customer requirements)
